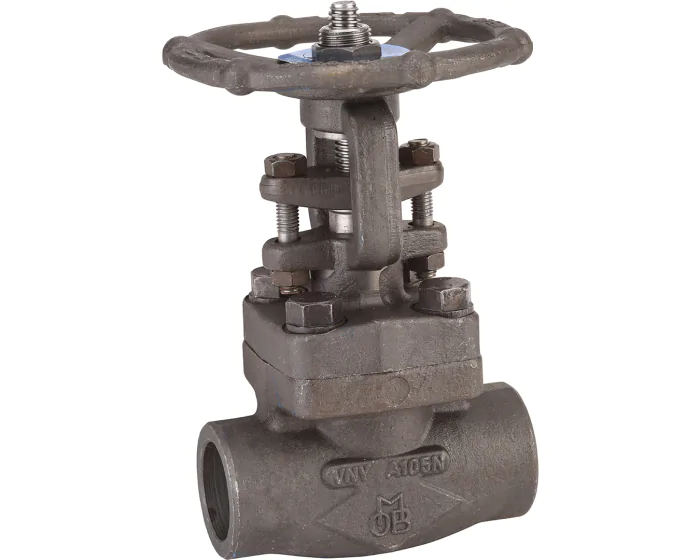

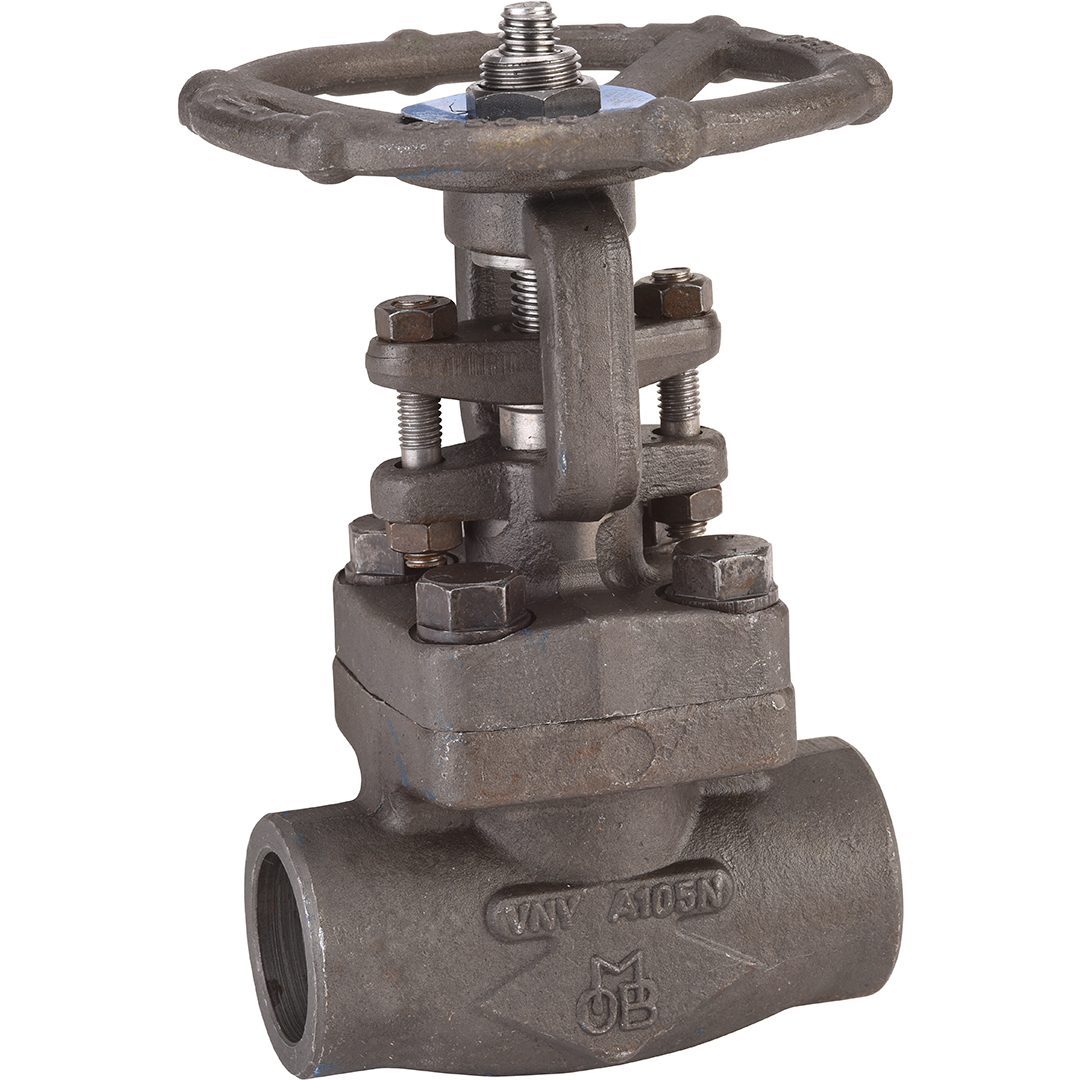

The 111 series gate valve in forged steel, Class 800 TRIM 16, SW weldable, standard bore, with non-rotating rising stem for the oil, steam and high pressure industries.
| Specification | Value |
|---|---|
| DN inches NPS | 3/8'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A105N |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| NACE MR0175 | Yes |
| TRIM | TRIM 16 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel AISI 316 |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 80.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 3.7 |
| Body material | Carbon steel ASTM A105 N |
| Gate material | Stainless steel AISI 316 + Stellite GR.6 |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 136 |
| Connections | Welding SW |
| Seats | Stainless steel ASTM A479 316 + Stellite Gr |
| TS max (°C) | 425 |
| TS min (°C) | -29 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Main product colour | Black |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel ASTM A105 N Standard DN10 - 3/8'' | 111010 | S1007443 |
€72.41
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN15 - 1/2'' | 111015 | S1007444 |
€72.41
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN20 - 3/4'' | 111020 | S1007445 |
€72.41
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN25 - 1'' | 111025 | S1007446 |
€112.20
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN40 - 1''1/2 | 111040 | S1007447 |
€222.94
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A105 N Standard DN50 - 2'' | 111050 | S1007448 |
€278.37
(excl. btw)
|
add to cart |
